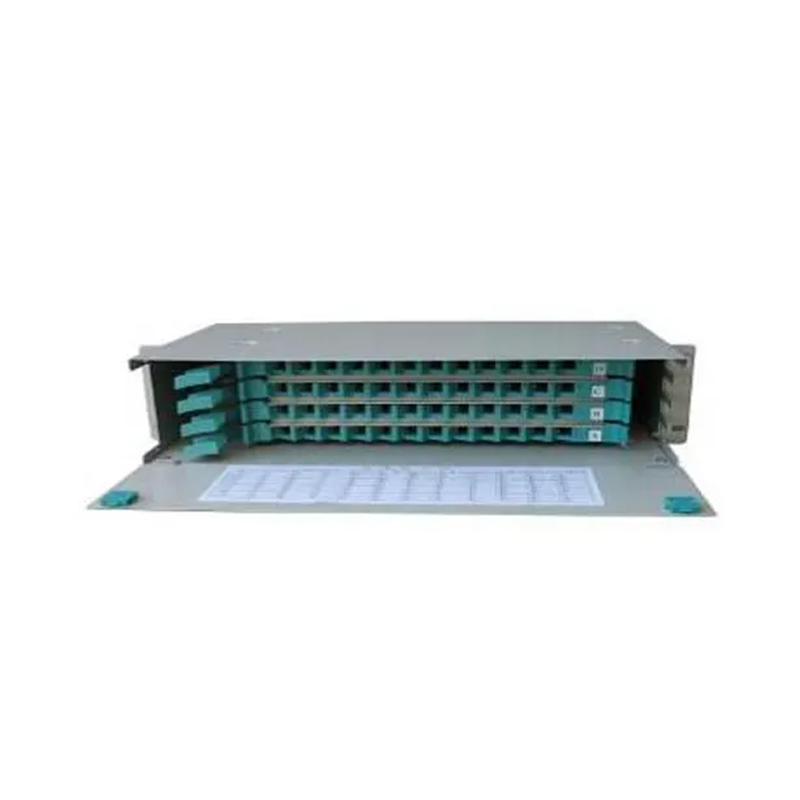

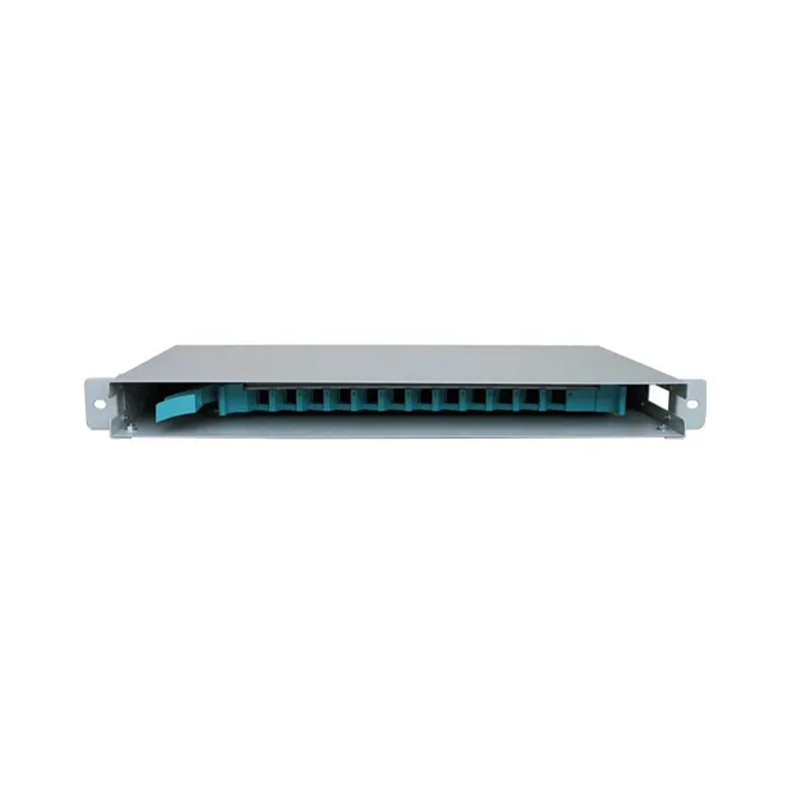

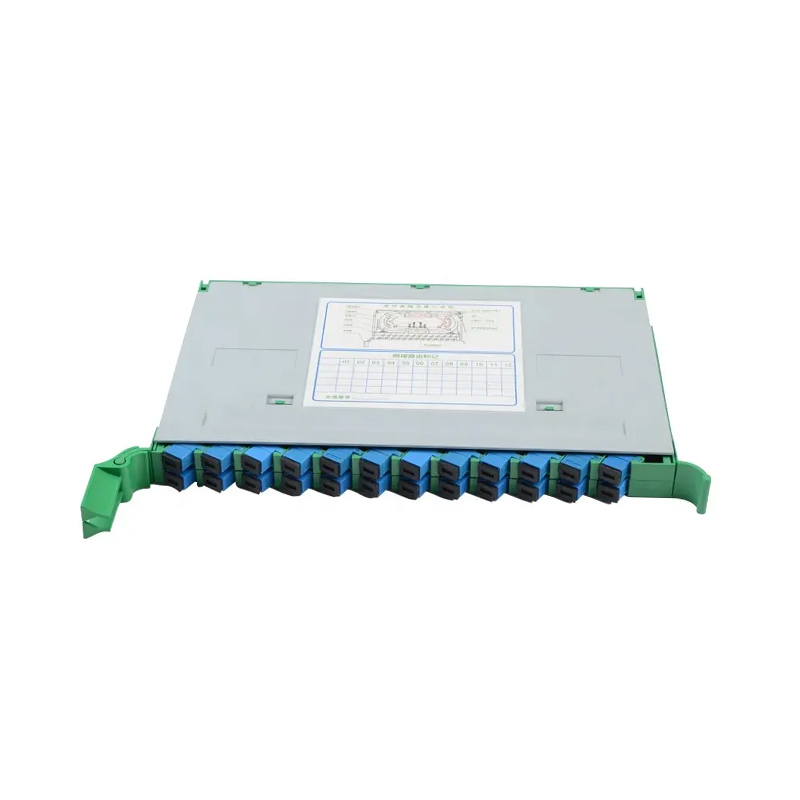

Cadru de distribuție cu fibră optică ODF

Cadrul de distribuție optică (ODF) este un rack sau dulap standardizat utilizat în rețelele de comunicații cu fibră optică pentru a organiza, termina, îmbina și distribui fibrele optice. Acesta servește ca un hub central pentru gestionarea conexiunilor de fibră între cablurile de intrare/ieșire, cabluri de corecție și echipamente de rețea.

DESPRE NOI

Ningbo Goshining Communication Technology Co., Ltd. este o întreprindere care proiectează, produce și vinde o gamă completă de produse din fibră optică cu servicii de înaltă calitate și de primă clasă, care ne permit să îndeplinim cerințele tuturor clienților și să oferim un serviciu unic. Produsele noastre includ conector rapid de fibră optică, cordon de corecție, splitter PLC, cabluri, cutie de distribuție, închidere de îmbinare și cutie terminală etc. Oferim, de asemenea, servicii de personalizare pentru a vă ajuta să vă dezvoltați propriul brand.

Certificat
Știri
Cadru de distribuție cu fibră optică ODF Industry knowledge

Fiber optic patch panels are core equipment for fiber optic connection, distribution and management in fiber optic communication systems. Their main functions are reflected in the following aspects:

First, fiber optic patch panels realize the orderly connection of fiber optic lines. In communication networks, a large number of optical fibers need to be connected to each other, and fiber optic patch panels provide a standardized platform to make these connections orderly. It can centrally manage optical fibers from different directions, avoid line confusion, and greatly improve the maintainability of the system.

Second, fiber optic patch panels provide reliable protection functions. The fiber core is extremely fragile and susceptible to physical damage and environmental factors. Through its sturdy shell and internal structure, the patch panel provides mechanical protection and environmental isolation for key parts such as fiber optic connectors and fusion points, effectively preventing erosion by external factors such as dust and moisture.

Fiber optic patch panels facilitate flexible deployment of lines. As business needs change, fiber optic lines may need to be adjusted frequently. The design of the patch panel enables technicians to quickly and conveniently perform fiber jumper, testing and maintenance operations, greatly improving work efficiency.

Finally, fiber optic patch panels help achieve standardized management. Through a unified interface and identification system, the patch panel makes the complex fiber optic network visual and standardized, which is convenient for daily management and troubleshooting.

The working principle of the fiber optic patch panel is based on the basic principle of fiber optic communication and combines the concept of structured cabling. Its core function is to realize the distribution and transfer of optical signals without processing or changing the signal itself. When the optical signal is transmitted to the patch panel through the optical fiber, it first enters the incoming line area of the patch panel. Here, the optical fiber is usually fixed on an appropriate support structure and necessary coiling is performed to maintain an appropriate bending radius to avoid optical signal attenuation caused by excessive bending.

Subsequently, the optical fiber can be connected in the patch panel in two main ways: one is direct docking with optical fiber connectors, and the other is to achieve permanent connection through fusion. The connector docking method is flexible and easy to adjust later; the fusion method has lower loss and higher stability. There are usually special fusion trays or adapter panels inside the patch panel to support these two connection methods.

After the connection is completed, the optical signal can be distributed to different outlet ports through jumpers or pigtails, and then connected to the corresponding communication equipment or other optical fiber lines. During the entire process, the distribution frame ensures that the optical fiber is routed reasonably, the bends are appropriate, and all connection points are firm and reliable, minimizing signal loss.
